ubs Ubuntu

Change Hostname¶

hostnamectl

ubs187 shows this

 Static hostname: ubs1-bct
         Icon name: computer-vm
           Chassis: vm
        Machine ID: 376134073c9545d0a88f9b375d8b09fe
           Boot ID: 3bcbcb9ebdbe400dba9ff72cf0ad3eab
    Virtualization: vmware
  Operating System: Ubuntu 16.04.1 LTS
            Kernel: Linux 4.4.0-184-generic
      Architecture: x86-64

sudo hostnamectl set-hostname ubs187.local.vnix.net

Install VMWare Tools¶

sudo pkg install open-vm-tools

Install MSSQL Server¶

Restore Backup to MSSQL¶

Expand Ubuntu Volume¶

To increase the size of your VMware Virtual Machine, you need to do 2 major steps. First, you need to increase the disk’s size in your vSphere Client or through the CLI. This will increase the “hardware” disk that your Virtual Machine can see. Then, you need to utilize that extra space by partitioning it. If you’re interested in just resizing your Linux LVM, please proceed to step 2. In this example, I’m increasing a 3GB disk to a 10GB disk (so you can follow using the examples). I would advise you to read the excellent documention on Logical Volume Management on tldp.org. Just a small note beforehand; if your server supports hot adding new disks, you can just as easily add a new Hard Disk to your Virtual Machine. You can increase the LVM volume without rebooting your Virtual Machine by rescanning the SCSI bus, more on that later in this article.

(1) Checking if you can extend the current disk or need to add a new one¶

This is rather important step, because a disk that has been partitioned in 4 primary partitions already can not be extended any more. To check this, log into your server and run fdisk -l at the command line.

fdisk -l

Disk /dev/sda: 187.9 GB, 187904819200 bytes
255 heads, 63 sectors/track, 22844 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes

Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *           1          25      200781   83  Linux
/dev/sda2              26        2636    20972857+  8e  Linux LVM

If it looks like that, with only 2 partitions, you can safely extend the current hard disk in the Virtual Machine. However, if it looks like this:

fdisk -l

Disk /dev/sda: 187.9 GB, 187904819200 bytes
255 heads, 63 sectors/track, 22844 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes

Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *           1          25      200781   83  Linux
/dev/sda2              26        2636    20972857+  8e  Linux LVM
/dev/sda3            2637       19581   136110712+  8e  Linux LVM
/dev/sda4           19582       22844    26210047+  8e  Linux LVM

It will show you that there are already 4 primary partitions on the system, and you need to add a new Virtual Disk to your Virtual Machine. You can still use that extra Virtual Disk to increase your LVM size, so don’t worry.

(2) The “hardware” part, “physically” adding diskspace to your VM¶

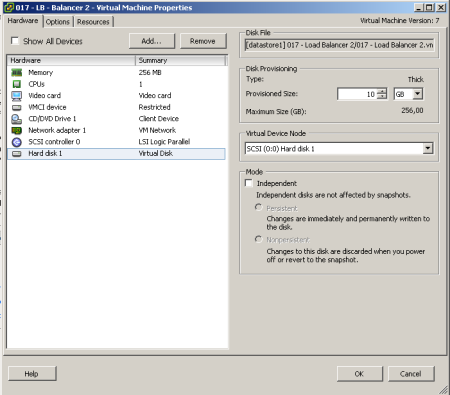

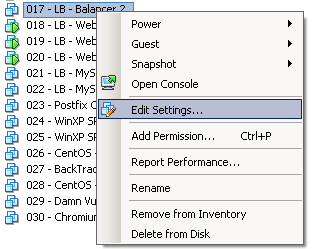

Increasing the disk size can be done via the vSphere Client, by editing the settings of the VM (right click > Settings).

Now, depending on the first step, if there aren’t four primary partitions yet, you can increasing the privisioned disk space.

If the “Provisioned Size” area (top right corner) is greyed out, consider turning off the VM first (if it does not allow “hot adding” of disks/sizes), and check if you have any snapshots made of that VM. You can not increase the disk size, as long as there are available snapshots. Alternatively, if you already have 4 primary paritions, you can also choose “Add…” to add new Hardware “Virtual Disk” to your VM, with the desired extra space.

(3) Partitioning the unallocated space: if you’ve increased the disk size¶

Once you’ve changed the disk’s size in VMware, boot up your VM again if you had to shut it down to increase the disk size in vSphere. If you’ve rebooted the server, you won’t have to rescan your SCSI devices as that happens on boot. If you did not reboot your server, rescan your SCSI devices as such. First, check the name(s) of your scsi devices.

ls /sys/class/scsi_device/

0:0:0:0 1:0:0:0  2:0:0:0

Then rescan the scsi bus. Below you can replace the ‘0:0:0:0’ with the actual scsi bus name found with the previous command. Each colon is prefixed with a slash, which is what makes it look weird.

echo 1 > /sys/class/scsi_device/0\:0\:0\:0/device/rescan

That will rescan the current scsi bus and the disk size that has changed will show up.

(3) Partitioning the unalloced space: if you’ve added a new disk¶

If you’ve added a new disk on the server, the actions are similar to those described above. But instead of rescanning an already existing scsi bus like show earlier, you have to rescan the host to detect the new scsi bus as you’ve added a new disk.

ls  /sys/class/scsi_host/

total 0
drwxr-xr-x  3 root root 0 Feb 13 02:55 .
drwxr-xr-x 39 root root 0 Feb 13 02:57 ..
drwxr-xr-x  2 root root 0 Feb 13 02:57 host0
Your host device is called ‘host0’, rescan it as such:

echo "- - -" > /sys/class/scsi_host/host0/scan

It won’t show any output, but running ‘fdisk -l’ will show the new disk.

Create the new partition¶

Once the rescan is done (should only take a few seconds), you can check if the extra space can be seen on the disk.

fdisk -l

Disk /dev/sda: 10.7 GB, 10737418240 bytes
255 heads, 63 sectors/track, 1305 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes

Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *           1          13      104391   83  Linux
/dev/sda2              14         391     3036285   8e  Linux LVM

So the server can now see the 10GB hard disk. Let’s create a partition, by start fdisk for the /dev/sda device.

~$  fdisk /dev/sda

The number of cylinders for this disk is set to 1305.
There is nothing wrong with that, but this is larger than 1024,
and could in certain setups cause problems with:
1) software that runs at boot time (e.g., old versions of LILO)
2) booting and partitioning software from other OSs
(e.g., DOS FDISK, OS/2 FDISK)

Command (m for help): n
Now enter ‘n’, to create a new partition.
Command action
e   extended
p   primary partition (1-4)

Now choose “p” to create a new primary partition. Please note, your system can only have 4 primary partitions on this disk! If you’ve already reached this limit, create an extended partition.

Partition number (1-4): 3

Choose your partition number. Since I already had /dev/sda1 and /dev/sda2, the logical number would be 3.

First cylinder (392-1305, default 392): <enter>

Using default value 392

Last cylinder or +size or +sizeM or +sizeK (392-1305, default 1305): <enter>

Using default value 1305

Note: the cylinder values will vary on your system. It should be safe to just hint enter, as fdisk will give you a default value for the first and last cylinder (and for this, it will use the newly added diskspace).
>Command (m for help): t
Partition number (1-4): 3
Hex code (type L to list codes): 8e
Changed system type of partition 3 to 8e (Linux LVM)
Now type t to change the partition type. When prompted, enter the number of the partition you’ve just created in the previous steps. When you’re asked to enter the “Hex code”, enter 8e, and confirm by hitting enter.
Command (m for help): w
Once you get back to the main command within fdisk, type w to write your partitions to the disk. You’ll get a message about the kernel still using the old partition table, and to reboot to use the new table. The reboot is not needed as you can also rescan for those partitions using partprobe. Run the following to scan for the newly created partition.
partprobe -s
If that does not work for you, you can try to use “partx” to rescan the device and add the new partitions. In the command below, change /dev/sda to the disk on which you’ve just added a new partition.
fdisk -l
Disk /dev/sda: 10.7 GB, 10737418240 bytes
255 heads, 63 sectors/track, 1305 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes

Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *           1          13      104391   83  Linux
/dev/sda2              14         391     3036285   8e  Linux LVM
/dev/sda3             392        1305     7341705   8e  Linux LVM

(3) Extend your Logical Volume with the new partition¶

Now, create the physical volume as a basis for your LVM. Please replace /dev/sda3 with the newly created partition.

pvcreate /dev/sda3

Physical volume "/dev/sda3" successfully created

Now find out how your Volume Group is called.

vgdisplay

--- Volume group ---
VG Name               ubs1-vs
...

Let’s extend that Volume Group by adding the newly created physical volume to it.

vgextend ubs1-vs /dev/sda3

Volume group “ubs1-vs" successfully extended

With pvscan, we can see our newly added physical volume, and the usable space (7GB in this case).

pvscan

PV /dev/sda2   VG VolGroup00   lvm2 [2.88 GB / 0    free]
PV /dev/sda3   VG VolGroup00   lvm2 [7.00 GB / 7.00 GB free]
Total: 2 [9.88 GB] / in use: 2 [9.88 GB] / in no VG: 0 [0   ]

Now we can extend Logical Volume (as opposed to the Physical Volume we added to the group earlier). The command is “lvextend /dev/VolGroupxx /dev/sdXX”.

If you’re running this on Ubuntu, use the following.

lvextend /dev/mapper/ubs1--vg-root /dev/sda3

All that remains now, it to resize the file system to the volume group, so we can use the space. Replace the path to the correct /dev device if you’re on ubuntu/debian like systems.

resize2fs /dev/mapper/ubs1--vg-root

And we’re good to go!

df -h

Filesystem            Size  Used Avail Use% Mounted on
/dev/mapper/VolGroup00-LogVol00 9.1G 1.8G  6.9G  21% /
/dev/sda1              99M   18M   77M  19% /boot
tmpfs                 125M     0  125M   0% /dev/shm

Original Article

https://ma.ttias.be/increase-a-vmware-disk-size-vmdk-formatted-as-linux-lvm-without-rebooting/

Univention Corporate Server¶

VMWare Settings¶

4GB CPU 4 RAM

Change Port to 8649¶

System - Registry

sudo ucr set sshd/port=8649
sudo ucr set security/packetfilter/package/univention-base-files/tcp/8649/all=ACCEPT
sudo ucr set security/packetfilter/package/univention-base-files/tcp/8649/all/en=SSH
sudo reboot

After making changes reboot the server.

Add user vnyx¶

Users

Add the user and group DM Admin

Install Letsencrypt¶

Favorites - App Center - Let’s Encrypt

Upgrading¶

** DO NOT UPGRADE ONLYOFFICE to 5.5.1.76 ****

ONLYOFFICE¶

Reinstall Fonts¶

Check

sudo univention-app shell onlyoffice-ds-integration
cd /usr/share/fonts
ls -l

If there is no Microsoft folder, continue:

apt-get install zip
wget https://ximg.co/fonts/microsoft.zip
unzip microsoft.zip
documentserver-generate-allfonts.sh
rm microsoft.zip

Clear the browser cache and reopen the page.
